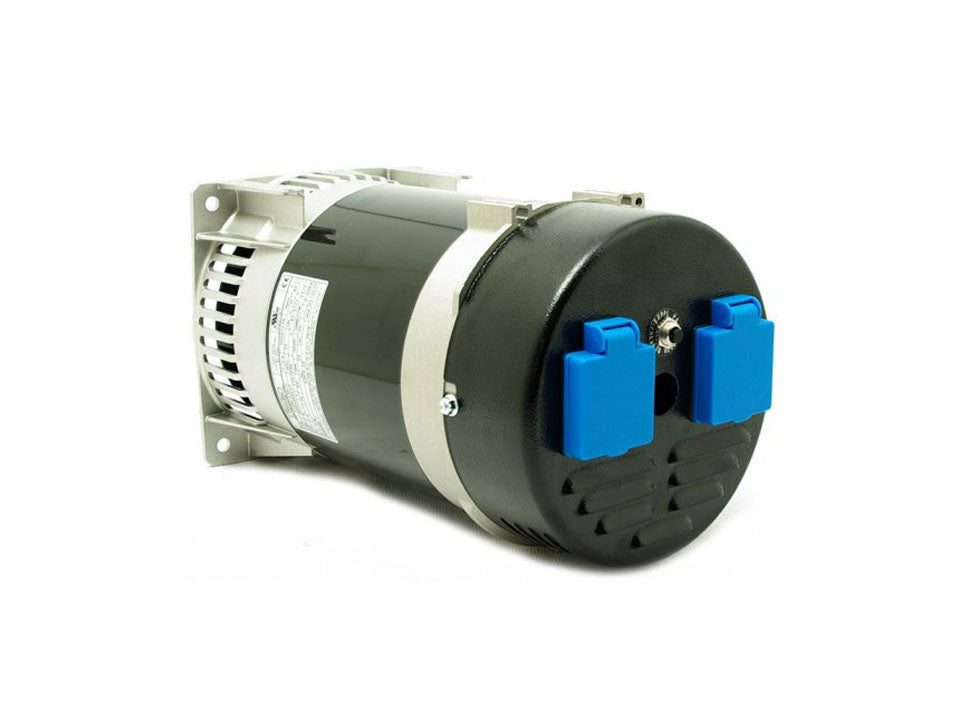

Alternator Mecc Alte S20W-110/A 2P, MF, Brushless, 3000 RPM 50 HZ, 7 KVA (J609B)

DESCRIPTION

S20W series alternators are single-phase brushless units. Their operating is highly reliable. These units do not require maintenance since they do not have slip rings nor slipping contacts.

S20W alternators are made in compliance with the 2006/42,2006/95, 2004/108 directives and their amendments, and the EN60034-1, CEI 2-3,IEC34-1, VDE 0530, BS4999-5000, N.F. 51.111 regulations.

The end brackets are diecast in high resistance alluminum alloy, the shaft is in C45 steel and is fitted with a keyed fan. The mechanical protection level meets standard IP21 (upon request higher levels of protection can be supplied).
